Question 10

The filter was tested by computing the convolution of the input x(n) with h(n).

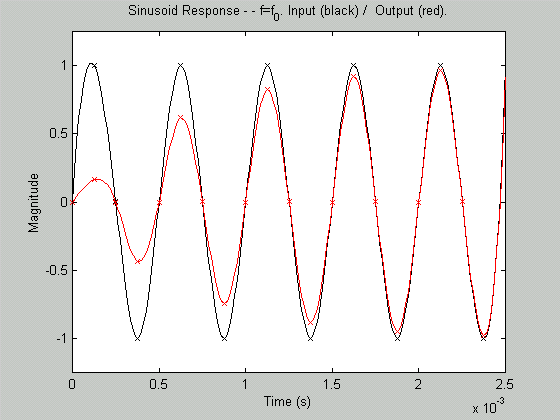

Using a sampled sine wave at frequency=f_0=2000 Hz:

:

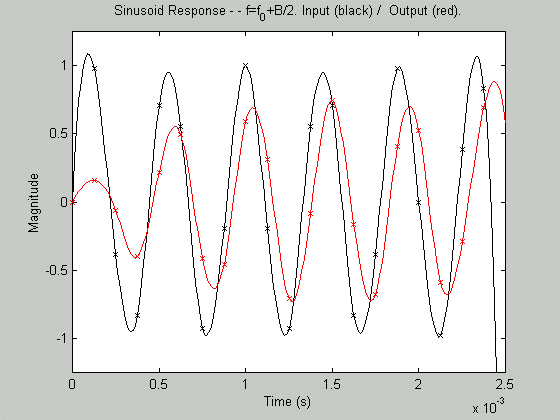

Using a sampled sine wave at frequency = f_0+B/2 = 2250 Hz:

The results compare exactly with the results obtained by the method of difference equations in question 8.
